DC UPS

Our battery standby systems are custom made and available for critical infrastructure, industrial, commercial, telecommunication and domestic applications. Today, our products can be found in power generation, substations, oil and gas installations, datacentres, hospitals, stadia and industrial premises across the UK.

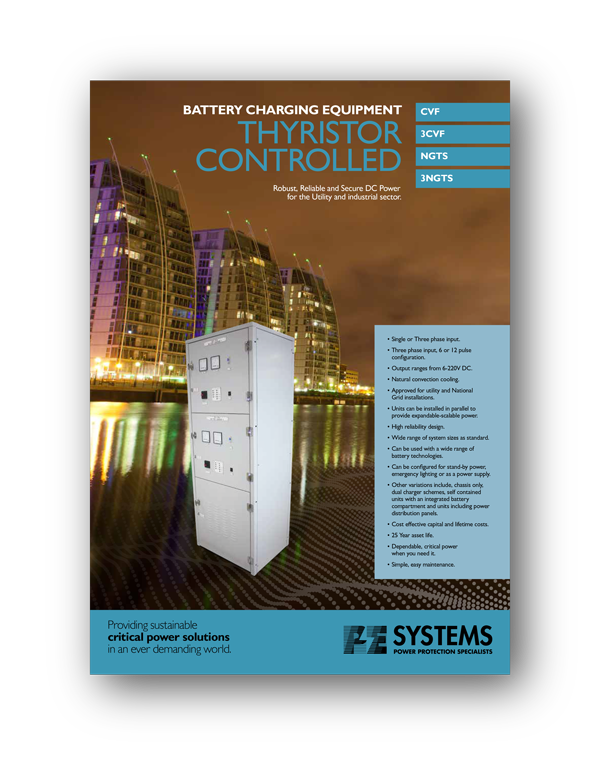

THYRISTOR CONTROLLED

PE Systems range of thyristor controlled charging equipment provides reliable, robust and secure DC power for the industrial and utility sectors. Available in a wide range of output voltages/currents, configurations and input voltages.

• Single or Three phase input.
• Three phase input, 6 or 12 pulse configuration.
• Output ranges from 6-220V DC.
• Natural convection cooling.
• Approved for utility and National Grid installations.
• Units can be installed in parallel to provide expandable-scalable power.
• High-reliability design.
• A wide range of system sizes as standard.
• Can be used with a wide range of battery technologies.
• Can be configured for standby power, emergency lighting or as a power supply.
• Other variations include chassis only, dual charger schemes, self-contained units with an integrated battery compartment and units including power distribution panels.
• Cost effective capital and lifetime costs.
• 25 Year asset life.
• Dependable, critical power when you need it.
• Simple, easy maintenance.

Download our technical sheet

Convection Cooled Switchmode Products

Based around the industry grade OPUS C DC power systems platform, our MRC rectifier modules can be designed and optimised to meet a multitude of demanding applications.

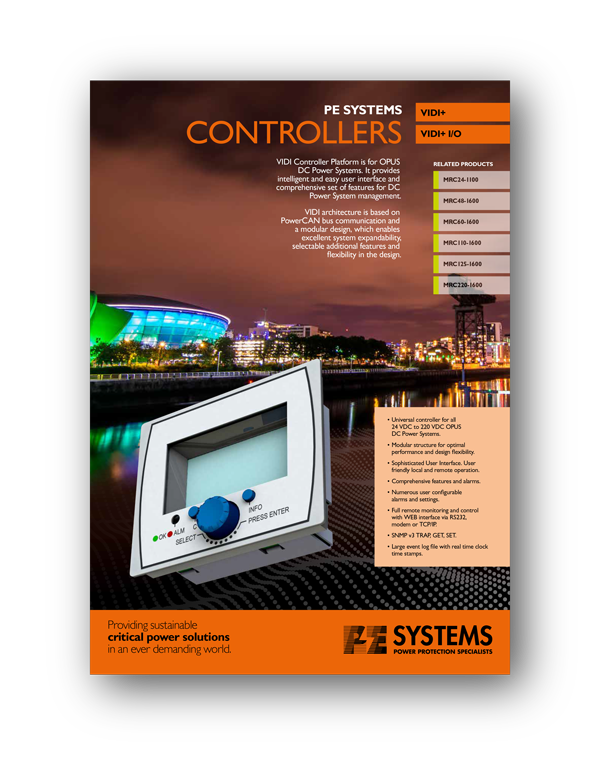

CONTROLLERS

VIDI Controller Platform is for OPUS DC Power Systems. It provides an intelligent and easy user interface and comprehensive set of features for DC Power System management. VIDI architecture is based on PowerCAN bus communication and a modular design, which enables excellent system expandability, selectable additional features and flexibility in the design.

• Real-time battery monitoring platform for mission-critical battery systems.
• Universal controller for all 24 VDC to 220 VDC OPUS DC Power Systems.
• Modular structure for optimal performance and design flexibility.
• Sophisticated User Interface. User-friendly local and remote operation.
• Comprehensive features and alarms.
• Numerous user-configurable alarms and settings.
• Full remote monitoring and control with WEB interface via RS232, modem or TCP/IP.
• SNMP v3 TRAP, GET, SET.
• Large event log file with real-time clock time stamps.

Download our technical sheet

MRC RECTIFIERS

MRC rectifier modules are designed and optimised for demanding industrial and telecom applications. Rectifier delivers 1600W output power at 48, 60, 110, 125 and 220 VDC and 1100W at 24 VDC. Rectifier input is single phase, 140-290 VAC. Rectifiers are convection cooled.

• Convection cooling.
• Outputs 24, 48, 60, 110, 125, 220 VDC.
• 1600W output power.
• 1100W for 24VDC model.
• Constant output power characteristics.
• Nominal 230VAC input, 140-290 VAC.
• Active load current sharing.
• Internal over-temperature protection.
• Digital communication over CAN bus with VIDI controller.
• Flexible design with full front cabling.
• EMC: EN 300 386:2005.
• Safety: IEC/EN 60950-1 CB certified.

Download our technical sheet

DO YOU HAVE A PROJECT WE CAN HELP WITH?
Put it in the hands of the experts at PE Systems, contact us today to speak to one of our experienced team.
For Inquiries: 01942 260330
